吊环螺钉
更新时间：2019-03-14 09:17:59发布：admin字号：T|T
相关介绍

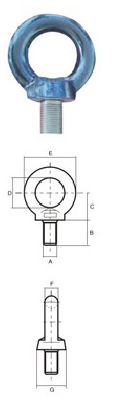

吊环螺钉-ZX138
型号 in | 最大载荷 T | B mm | C mm | D mm | E mm | F mm | G mm | 重量 Kg/pc |
M8 | 0.16 | 16 | 18 | 20 | 36 | 9.10 | 21.20 | 0.04 |
M10 | 0.25 | 20 | 22 | 24 | 44 | 11.10 | 25.10 | 0.08 |
M12 | 0.40 | 22 | 26 | 28 | 52 | 13.10 | 29.10 | 0.13 |
M16 | 0.63 | 28 | 31 | 34 | 62 | 15.20 | 35.20 | 0.23 |
M20 | 1.00 | 35 | 36 | 40 | 72 | 17.40 | 41.40 | 0.38 |
M24 | 1.60 | 40 | 44 | 48 | 88 | 21.40 | 49.40 | 0.71 |
M30 | 2.50 | 45 | 53 | 56 | 104 | 25.70 | 57.70 | 1.21 |
M36 | 4.00 | 55 | 63 | 67 | 123 | 30.00 | 69.00 | 2 |
M42 | 6.30 | 65 | 74 | 80 | 144 | 34.00 | 82.40 | 3.07 |
M48 | 8.00 | 70 | 87 | 95 | 171 | 40.70 | 97.70 | 4.95 |
M56 | 10.00 | 80 | 100 | 112 | 196 | 44.70 | 114.70 | 7.16 |
M64 | 16.00 | 90 | 115 | 125 | 221 | 51.40 | 128.40 | 10.38 |
M72*6 | 20.00 | 100 | 130 | 140 | 260 | 63.80 | 143.80 | 17.26 |
M80*6 | 25.00 | 115 | 150 | 160 | 296 | 71.80 | 163.80 | 25.89 |
M100*6 | 40.00 | 140 | 175 | 200 | 650 | 79.20 | 204.20 | 40.27 |
