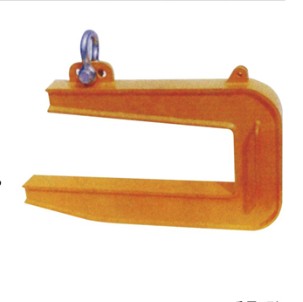

C型—B卷板吊具
更新时间：2019-03-14 10:28:50发布：admin字号：T|T
相关介绍
钢卷重量t | 钢卷宽度mm | 钢卷内径mm | A mm | B mm | C mm | D mm | E mm | H mm | R mm | 自重 kg |
3.2 | ≤300 | ≥400 | 300 | 590 | 155 | 845 | 250 | 430 | 50 | 85 |
350-350 | ≥400 | 500 | 725 | 155 | 924 | 250 | 450 | 50 | 130 | |
5 | 750-900 | ≥400 | 900 | 1225 | 200 | 1144 | 324 | 500 | 60 | 350 |
900-1100 | ≥500 | 1100 | 1450 | 200 | 1331 | 318 | 600 | 60 | 420 | |
1100-1500 | ≥500 | 1300 | 1670 | 200 | 1332 | 375 | 600 | 60 | 530 | |
750-900 | ≥500 | 900 | 1290 | 300 | 1555 | 435 | 650 | 90 | 570 | |
10 | 900-1120 | ≥500 | 1120 | 1555 | 300 | 1767 | 477 | 850 | 90 | 790 |
1100-1300 | ≥500 | 1300 | 1758 | 300 | 1722 | 478 | 750 | 90 | 795 | |
16 | 1300-1500 | ≥500 | 1500 | 1955 | 310 | 1854 | 467 | 850 | 90 | 1120 |
900-1100 | ≥600 | 1100 | 1540 | 300 | 1850 | 594 | 850 | 90 | 1140 | |
25 | 1100-1250 | ≥600 | 1250 | 1710 | 310 | 1871 | 533 | 850 | 90 | 125 |
900-1100 | ≥600 | 1100 | 1570 | 370 | 1982 | 633 | 850 | 110 | 1800 | |
1100-1300 | ≥700 | 1300 | 1810 | 370 | 2058 | 716 | 850 | 110 | 2130 | |
32 | 1400-1660 | ≥700 | 1660 | 2240 | 550 | 2450 | 700 | 850 | 130 | 2950 |
